PRODUCT DETAILS
Medol Name: Low voltage heavy duty welding cable
Applications:
Welding cable designed for the secondary(high curred) conneaction to automatic or hand-held matal arc welding electrodes. It is suitable for flexible use under rugged conditions, on assembly lines and conveyor systems, in machine tool and automatically operated line and spot welding machines.
Construction:
Conductor: High conductivity, bare annealed copper flexible conductor.
Sheath:Double sheathed with specially developed thermoplastic Elastomer(TPR/TPE),outer layer is orange coloured.
Current Rating:
The maximum current ratings of flexible welding cables for different duty cycles and based on an ambient air temperature of 25℃ and a maximum conductor temperature of 90 ℃. The percentage duly cycles for various processes and applications are as follows:
Volatage Drop: When total cable lengths in excess of 15 mtr., are involved, it may be necessary to use cables of large cross section to ensure that the voltage drop is not excessive and welding currents are maintained at adequate levels.
Size(mm2) | Resistance (ohm/km) | Thickness of sheath(mm) | Min.OD (mm) | Max.OD (mm) |
10 | 1.91 | 2.00 | 7.80 | 10.00 |
16 | 1.21 | 2.00 | 9.00 | 11.50 |
25 | 0.78 | 2.00 | 10.00 | 13.00 |
35 | 0.554 | 2.00 | 11.50 | 14.50 |
50 | 0.386 | 2.20 | 13.00 | 17.00 |
70 | 0.272 | 2.40 | 15.00 | 19.00 |
95 | 0.206 | 2.60 | 17.50 | 21.50 |
120 | 0.161 | 2.80 | 19.50 | 24.00 |
150 | 0.129 | 3.00 | 21.50 | 26.00 |
185 | 1.106 | 3.20 | 23.00 | 29.00 |
240 | 0.0801 | 3.40 | 27.00 | 32.00 |
300 | 0.0641 | 3.60 | 30.00 | 35.00 |
400 | 0.0486 | 3.80 | 33.00 | 39.00
|
We are capable of meeting the most strict delivery schedules according to per purchase order. Meeting the deadline is always the top priority as any delay in the delivery of cable can contribute to overall project delay and cost overrun.

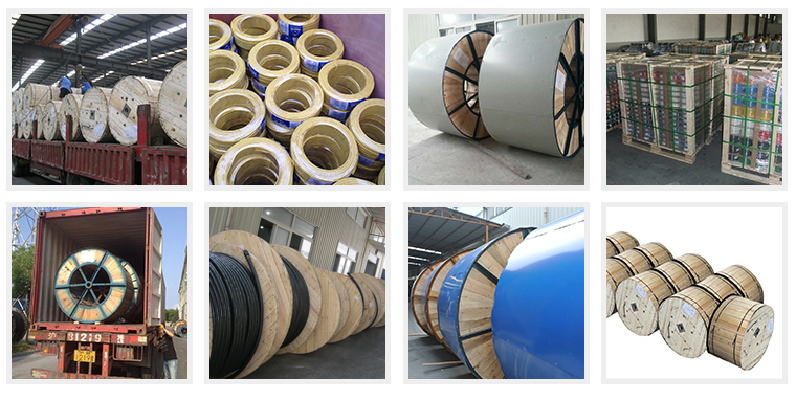

Cable is supplied in wooden reels, corrugated boxes and coils. Cable ends are sealed with BOPP self adhesive tape and non-hygroscopic sealing caps to protect the cable ends from moisture. The required marking shall be printed with a weather-proof material on the outsides of drum according to customer's requirement.
